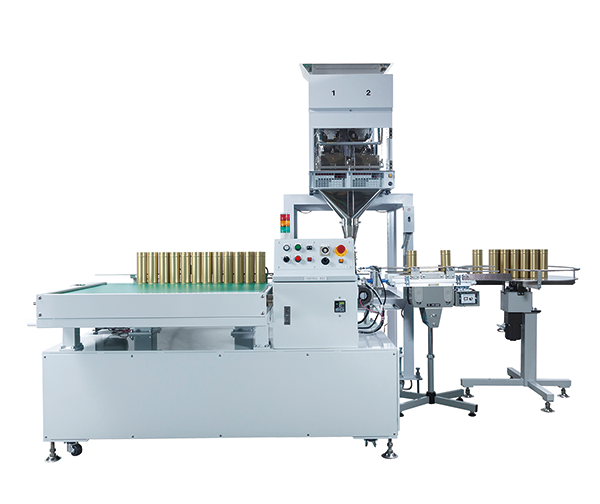

Canning machine

Tin * Size Diameter: Min. 55–Max.100 mm
Height: Min. 95–Max. 170 mm
Capacity Max. 16 bags/min. * Depends on specification
Feeding System Standard: Load-cell Weigher, P-230
Option: Volumetric slide doser, Auger filler, Multiple weigher, Vibratory bowl feeder
Dimensions 2,885 (W) x 1,985 (D) x 2,050 (H)
Weight 710 kg (Main Body)
Power Supply ** 3-Phase / 200 V / 0.4 kW (Canning System)
Single-Phase / 100 V / 0.6 kW (Load-cell weigher)
Compressed Air ** 40 L/min.
CE Marking *** Not Available
* Tin must be metalic and cylindrical body. (Square body is also possible by using adjsutment parts.)
** Transformer for local voltage and dried compressed air to be prepared by the customer.
*** Fail-safe design based on CE directive.
